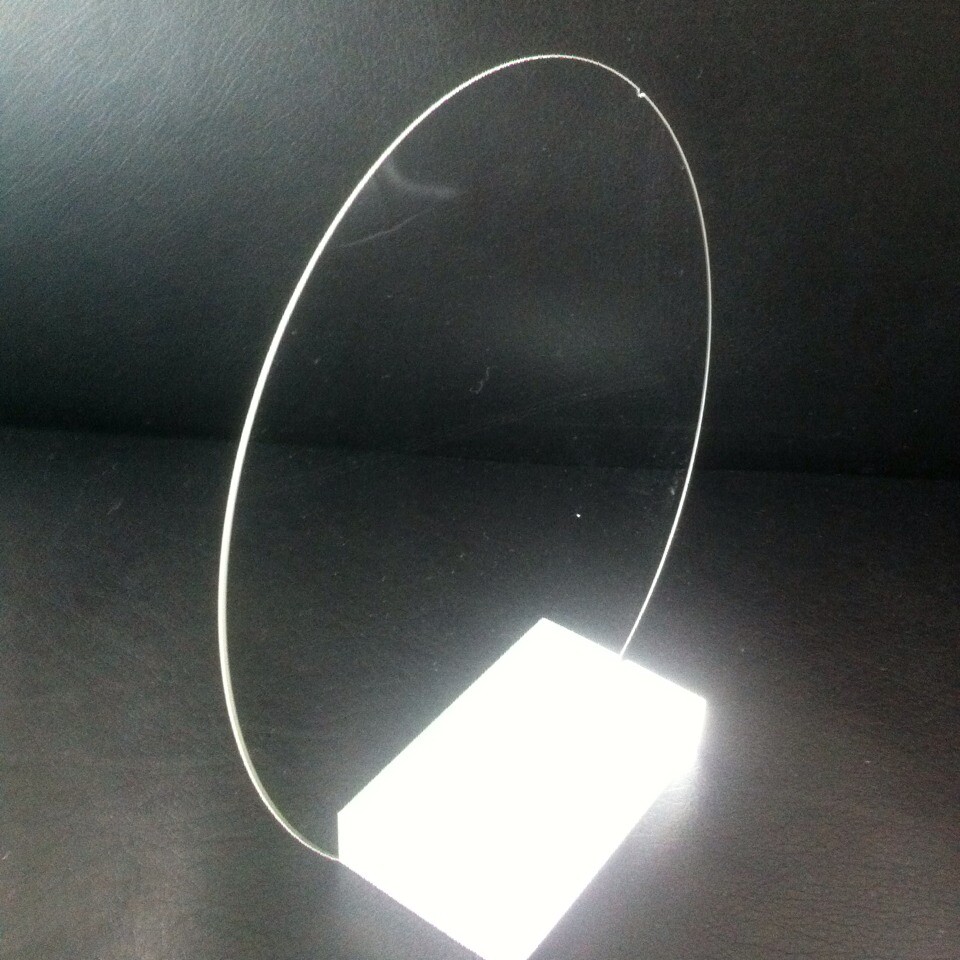

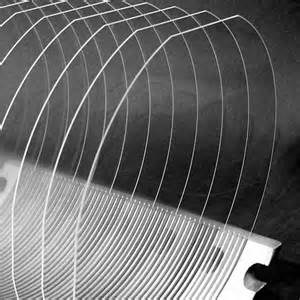

Quartz（石英） （mono-crystal Quartz)单晶石英 (Glass)玻璃
WaferHome can manufacture the high purity Quartz & Glass
Contact info
E-mail waferhome@hotmail.comSpecification for CZ Growth Quartz & Glass
| Material | Dimeter | dopant |
Orientaion |
thickness | Resistivity | Flat |
Surface/Roughness | Geometric parameter |
|---|---|---|---|---|---|---|---|---|
| Quartz | 25.4mm 50.8mm 76.5mm | customization |
|
400um+/-20 400um+/- 20 400um+/-20 | 0.0001 - 200 Ohm-cm /Customization |
N/A 16mm 22.5mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um |
| 100mm 125mm 150mm | customization | 525um+/-20 625um+/-20 625um+/-20 | 0.0001 - 200 Ohm-cm /Customization | 32.5mm 42.5mm 57.5mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| 200mm | customization | 725um+/-20 | 0.0001 - 200 Ohm-cm /Customization | nothch/flat | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| 300mm | customization | 775um+/-20 | 0.0001 - 200 Ohm-cm /Customization | notch/flat | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| BK7 | 25.4mm 50.8mm 76.5mm | customization |
|
200um+/- 20 100um+/-20 customization | 0.0001 - 200 Ohm-cm /Customization |
N/A 16mm 22.5mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um |
| 100mm 125mm 150mm | customization | 100um+/-20 200um+/- 20 customization | 0.0001 - 200 Ohm-cm /Customization | 32.5mm 42.5mm 57.5mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| 200mm | customization | 100um+/-20 200um+/- 20 customization | 0.0001 - 200 Ohm-cm /Customization | notch/flat | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| 300mm | customization | 100um+/-20 200um+/- 20 customization | 0.0001 - 200 Ohm-cm /Customization | notch/flat | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| BoroFloat33 | 25.4mm 50.8mm 76.5mm | customization |
|
1000um 2000um customization | 0.0001 - 200 Ohm-cm /Customization |
N/A 16mm 22.5mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um |
| 100mm 125mm 150mm | customization | 1000um 2000um customization | 0.0001 - 200 Ohm-cm /Customization | 16mm+/-2mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| 200mm | customization | 1000um 2000um customization | 0.0001 - 200 Ohm-cm /Customization | 16mm+/-2mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| 300mm | customization | 1000um 2000um customization | 0.0001 - 200 Ohm-cm /Customization | 16mm+/-2mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| Soda Lime Glass | 25.4mm 50.8mm 76.5mm | customization |
|
400um+/-20 400um+/- 20 400um+/-20 | 0.0001 - 200 Ohm-cm /Customization |
N/A 16mm 22.5mm | polished/etched polished/polished | TTV < 2um TIR <1um STIR < 1um BOW < 10um Warp < 10um |
| 100mm 125mm 150mm | customization | 525um+/-20 625um+/-20 625um+/-20 | 0.0001 - 200 Ohm-cm /Customization | 32.5mm 42.5mm 57.5mm | polished/etched polished/polished | TTV < 2um TIR <1um STIR < 1um BOW < 10um Warp < 10um | ||
| 200mm | customization | 725um+/-20 | 0.0001 - 200 Ohm-cm /Customization | nothch/flat | polished/etched polished/polished | TTV < 2um TIR <1um STIR < 1um BOW < 10um Warp < 10um | ||
| 300mm | customization | 775um+/-20 | 0.0001 - 200 Ohm-cm /Customization | notch/flat | polished/etched polished/polished | TTV < 2um TIR <1um STIR < 1um BOW < 10um Warp < 10um | ||
| BK7 | 25.4mm 50.8mm 76.5mm | customization |
|
200um+/- 20 100um+/-20 customization | 0.0001 - 200 Ohm-cm /Customization |
N/A 16mm 22.5mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um |
| 100mm 125mm 150mm | customization | 100um+/-20 200um+/- 20 customization | 0.0001 - 200 Ohm-cm /Customization | 32.5mm 42.5mm 57.5mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| 200mm | customization | 100um+/-20 200um+/- 20 customization | 0.0001 - 200 Ohm-cm /Customization | notch/flat | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| 300mm | customization | 100um+/-20 200um+/- 20 customization | 0.0001 - 200 Ohm-cm /Customization | notch/flat | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | ||
| Mono-Crystal-Quartz | 25.4mm 50.8mm 76.5mm | customization | <100> <111> or special orientation |
200um+/- 20 100um+/-20 customization | 0.0001 - 200 Ohm-cm /Customization |
N/A 16mm 22.5mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um |
| 100mm 125mm 150mm | customization | <100> <111> or special orientation | 100um+/-20 200um+/- 20 customization | 0.0001 - 200 Ohm-cm /Customization | 32.5mm 42.5mm 57.5mm | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | |
| 200mm | customization | <100> <111> or special orientation | 100um+/-20 200um+/- 20 customization | 0.0001 - 200 Ohm-cm /Customization | notch/flat | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um | |
| 300mm | customization | <100> <111> or special orientation | 100um+/-20 200um+/- 20 customization | 0.0001 - 200 Ohm-cm /Customization | notch/flat | polished/etched polished/polished | TTV < 5um TIR <3um STIR < 2um BOW < 20um Warp < 30um |
.
